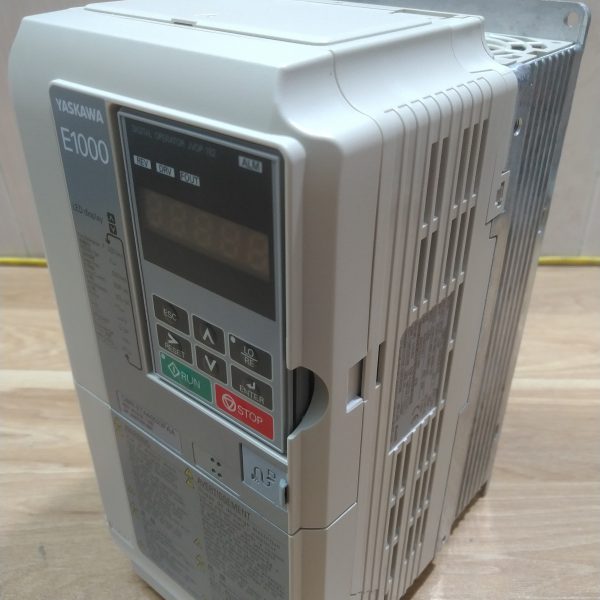

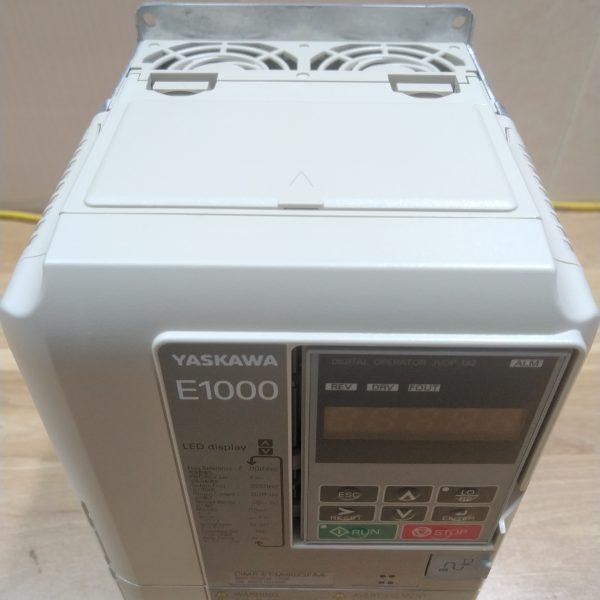

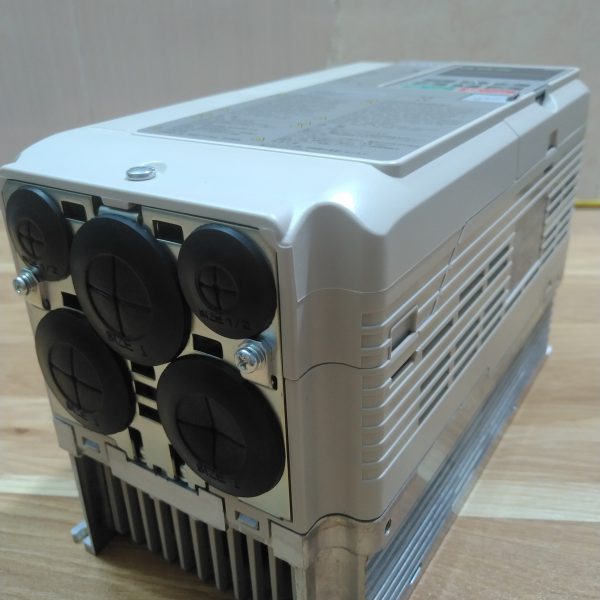

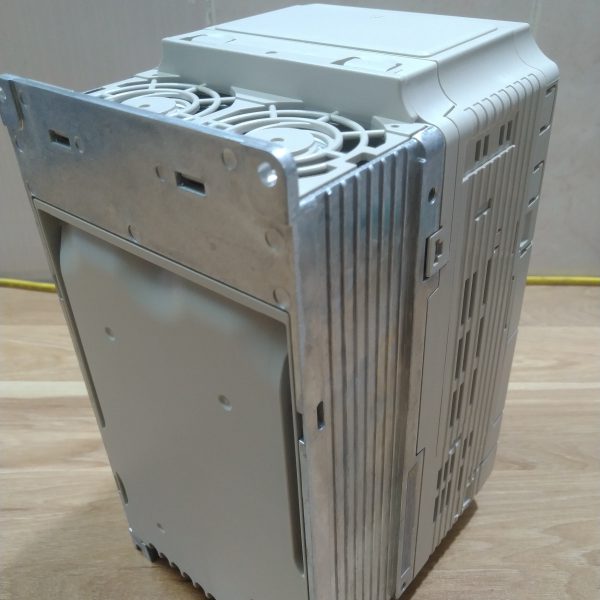

Inverter Yaskawa E1000 series.
Manufacturer: YASKAWA
Origin: Japan
Status: Contact
Price: Contact
Model: E1000
![](https://ips-engineering.com.vn/en/wp-content/uploads/2020/11/dt4.png)
?Product customer support:
Serie: Inverter Yaskawa E1000 series.
General features:
- Yaskawa E1000 inverter has modern control technology.
- Precise control without encoder.
- Advanced torque characteristics.
- Auto-tuning feature.
- Smooth operation.
- Solve the situation of power failure in a short time.
- E1000 inverter is energy-saving, environmentally friendly, and safe
Specifications:
Application of Yaskawa A1000 | Normal load: Inverter for pump, fan, HVAC
Heavy loads: Inverters for crane applications and lifting machines, conveyors, air compressors, inverters for extrusion presses, winding machines, machine tools… |
Power supply | 3 phase 200V, 3 phase 400V, (− 15% to +10% ) 50-60Hz (± 5%) |
Power | 0.4-110kW (200V), 0.4-630kW (400V) |
Current | 3.2-415A (200V), 1.8-1090A (400V) |
Frequency range | 0.01-400Hz |
Starting torque | 150%-200% depending on the control method |
Overload capacity | Normal load 120% for 60 seconds, Heavy load 150% for 60 seconds |
Control method | V/f, V/f with speed feedback, open-loop vector, closed-loop vector with speed feedback, open-loop vector for synchronous motor, closed-loop vector for motor synchronous, high-level open-loop vector. |
Braking | Braking Brake 30kW or more inverters have a built-in dynamic braking control circuit for a quick stop when combined with a braking resistor |
Input | Multi-function digital input, frequency reference input, safety input |
Output | Multi-function optical isolation output, relay fault alarm, multi-function digital output, monitoring output, safety monitoring output |
Protection function | Motor, instantaneous overcurrent, overload, overvoltage, undervoltage, overheat, brake resistor overheat, drop prevention |
Main function | Auto-detect engine speed when power is lost using a speed sensorKEB function keeps the engine stable when power is lost using regenerative energy
Capable of sensorless control (IPM motor position control without feedback from the motor (encoder) and without additional controller). Provides many features to help set up and operate the inverter easily such as auto-tuning mode… Add in PID controller Communication: Supports communication standards RS422/RS485 (default), PROFIBUS – DP, DeviceNet, CC-Link, CANopen, LONWORKS, MECHATROLINK -2, MECHATROLINK-3 |
Communication | Supports communication standards RS422/RS485 (default), PROFIBUS – DP, DeviceNet, CC-Link, CompoNet, CANopen, LONWORKS, MECHATROLINK -2, MECHATROLINK-3 |
Expansion device | LCD operation screen, AC reactor, DC reactor, brake unit, brake resistor, noise filter…Speed reference card, communication card, monitoring card, transmitter speed control card |
Protection class | IP00 (Inverter opening), IP20 (Closing) |
Installation Instructions Inverter Yaskawa E1000 series. Contact mailbox nguyengiakhanh.ip@gmail.com or phone number 0978.705.050
