Serie: SH Series PLC

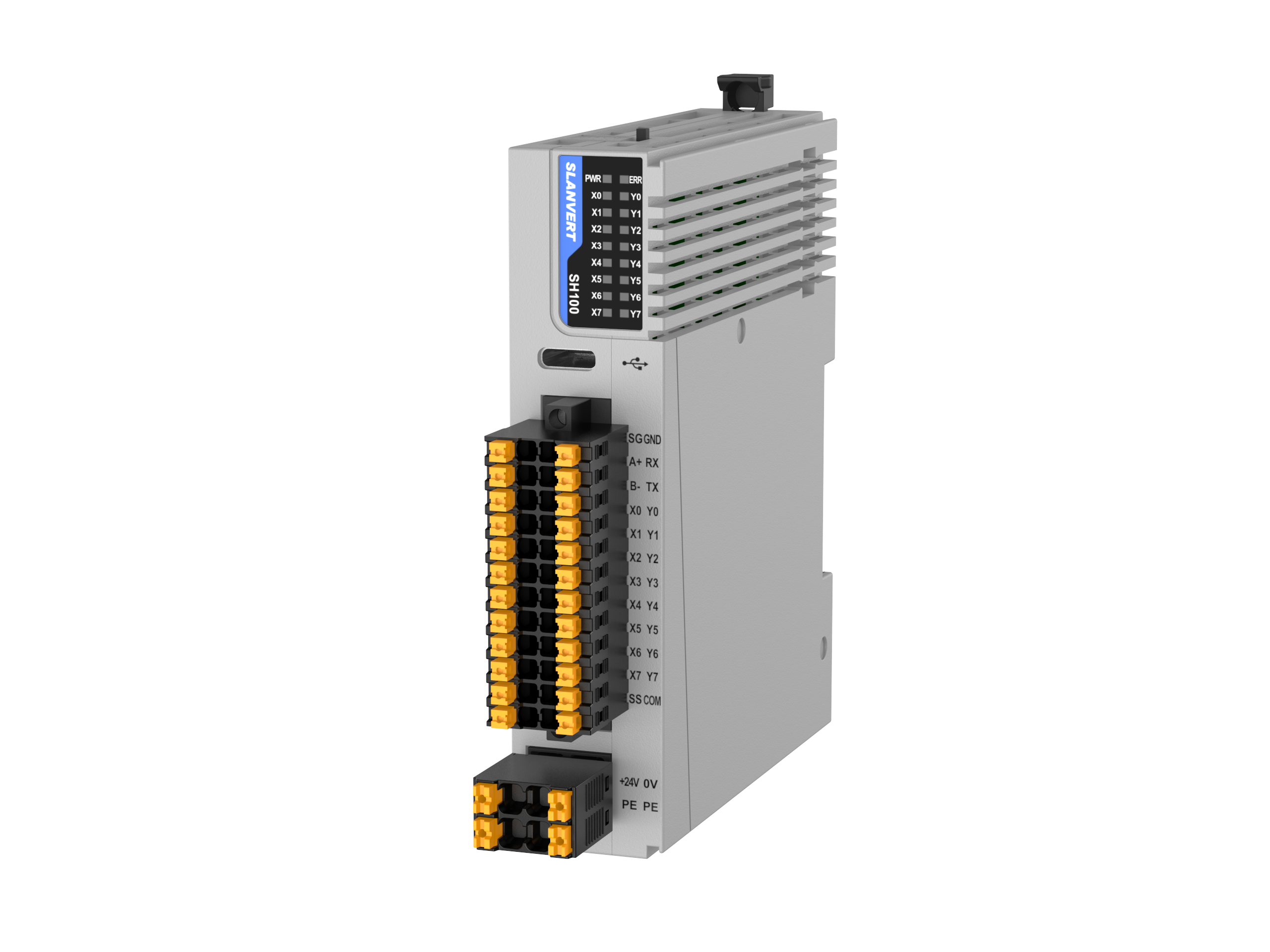

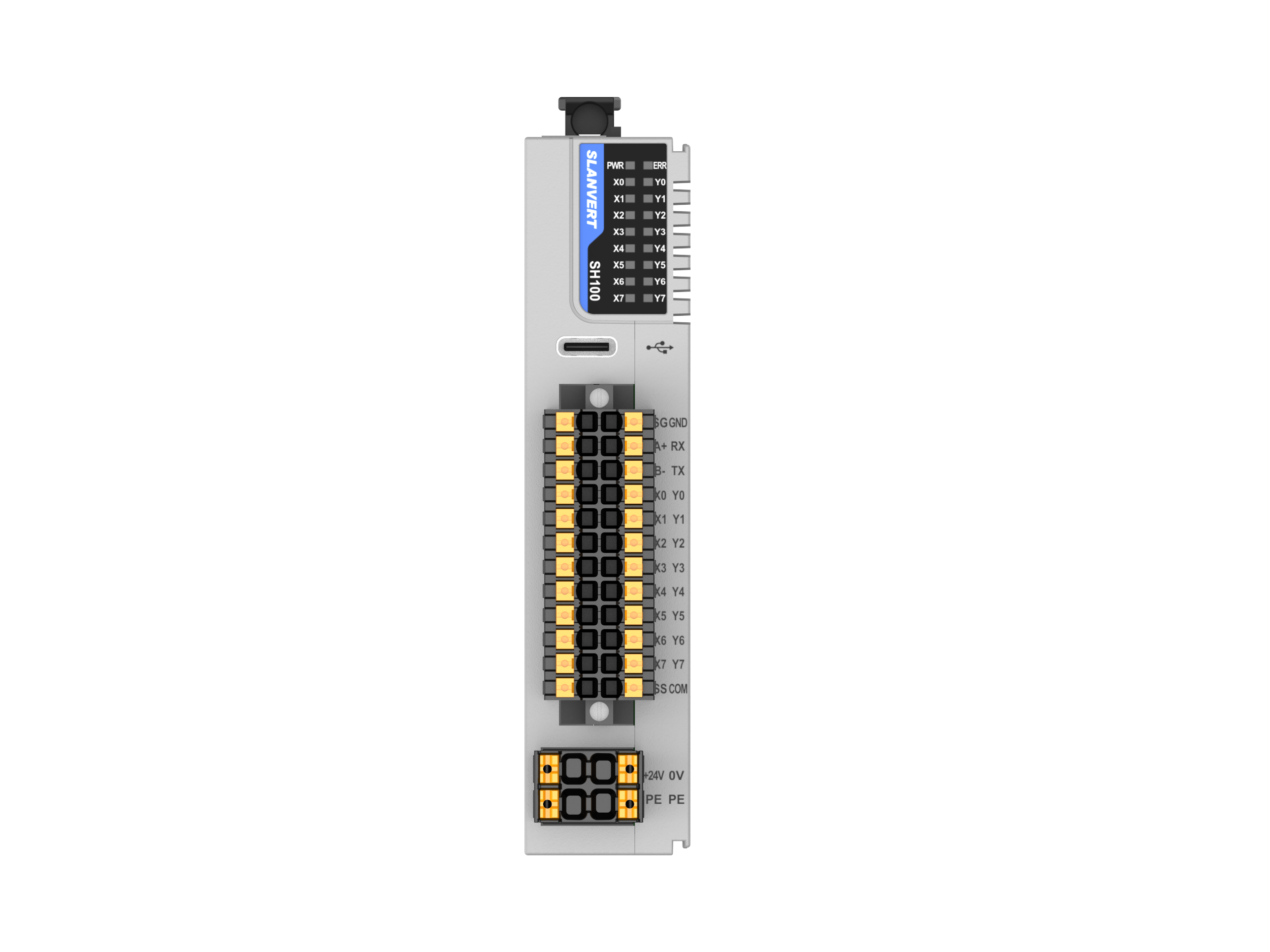

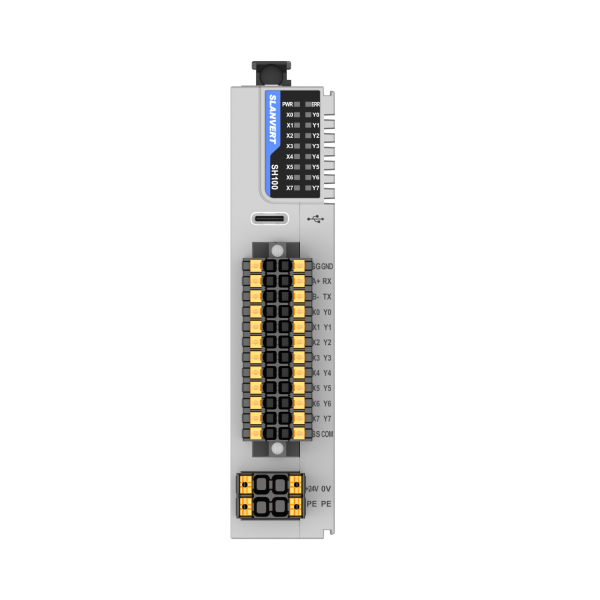

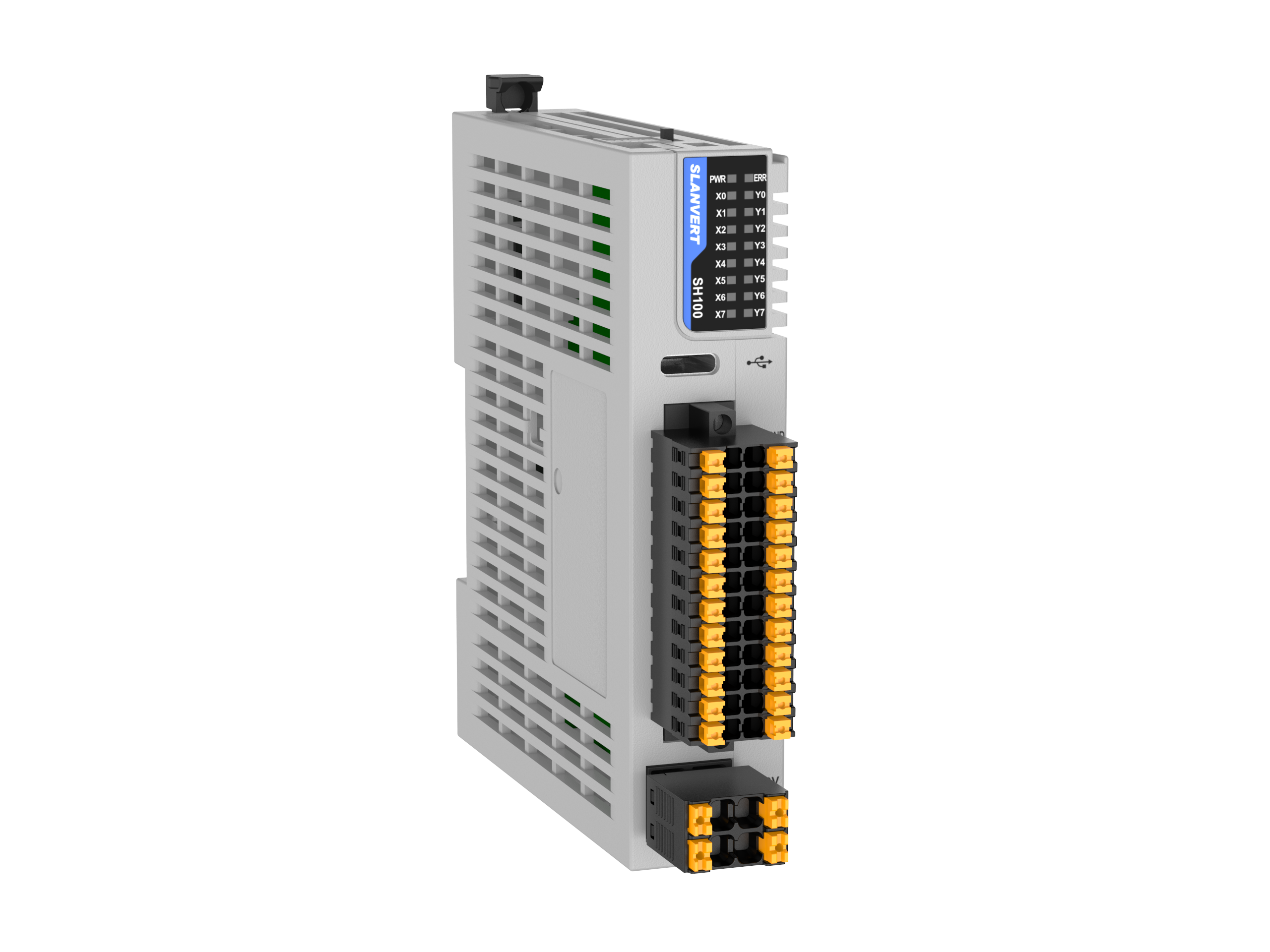

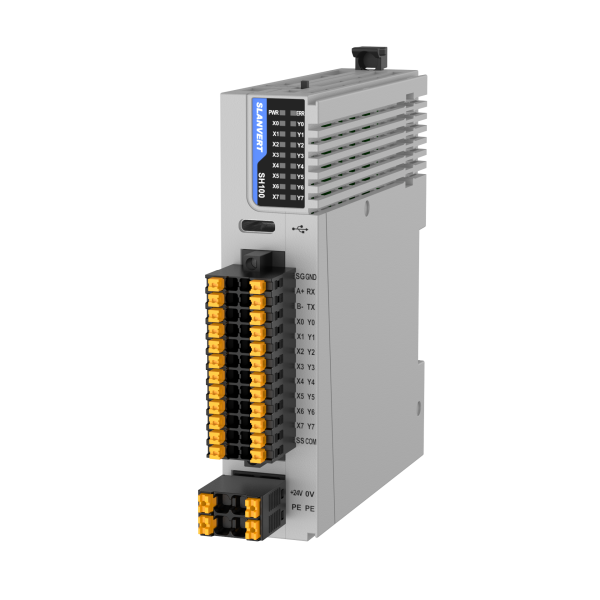

SH100 series

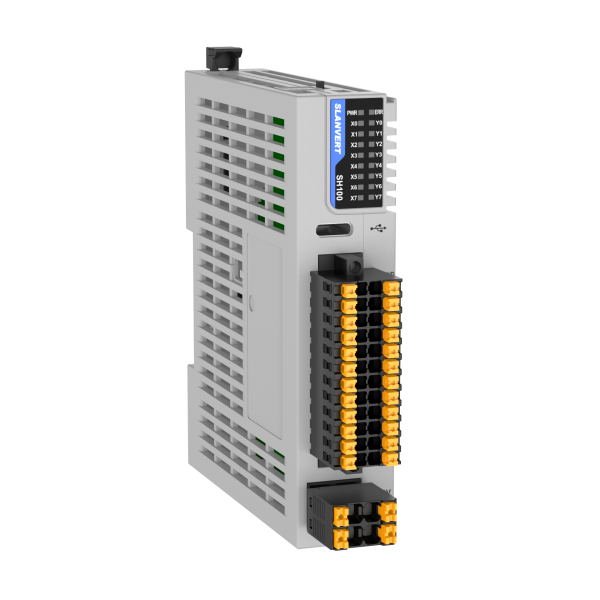

| Model | SH100-0808TN | SH100-0808TP |
| Features | Ultra-thin programmable controller, 8-point input, 8-point NPN output | Ultra-thin programmable controller, 8 input points, 8 PNP output points |
| Supply voltage | DC24V | |
| Program storage capacity | 16K steps | |
| Basic instruction execution time | 0.2 μs | |
| Power-off retention | FLASH permanent storage, maximum 2K Bytes | |
| Programming language | LD, IL, SFC | |
| Digital input type | NPN and PNP | |
| Rated Voltage | DC24V，4mA | |
| Logic 1 (voltage range) | >15V DC | |
| Logic 0 (voltage range) | <5V DC | |
| Filter | X0~X7 have digital filtering function, filtering time 0~60ms Other terminals adopt hardware filter, about 10ms | |
| High-speed counter | Single-phase 50kHz [2 pcs: X0/X1], 6×10 kHz [6 pcs: X2-X7] Dual-phase 25 kHz [1 pc], 5 kHz [3 pcs] | |
| Highest pulse output (transistor) | 3 channels 100kHz pulse output [Y0-Y2] | |
| Interface | 2 serial communication ports: Port 0: RS232; Port 1: RS485; 1 USB interface |
|
| Baud rate | 1.2kbps~115.2kbps | |
| Communication protocol | Modbus/Free port/N:N | |
| USB communication | USB2.0, Type C. Supports program upload and download, monitoring, solid-state software upgrade. | |

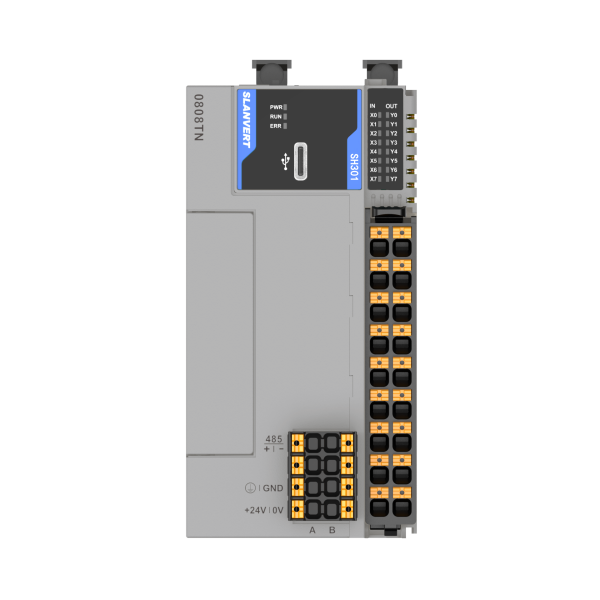

SH300 series*

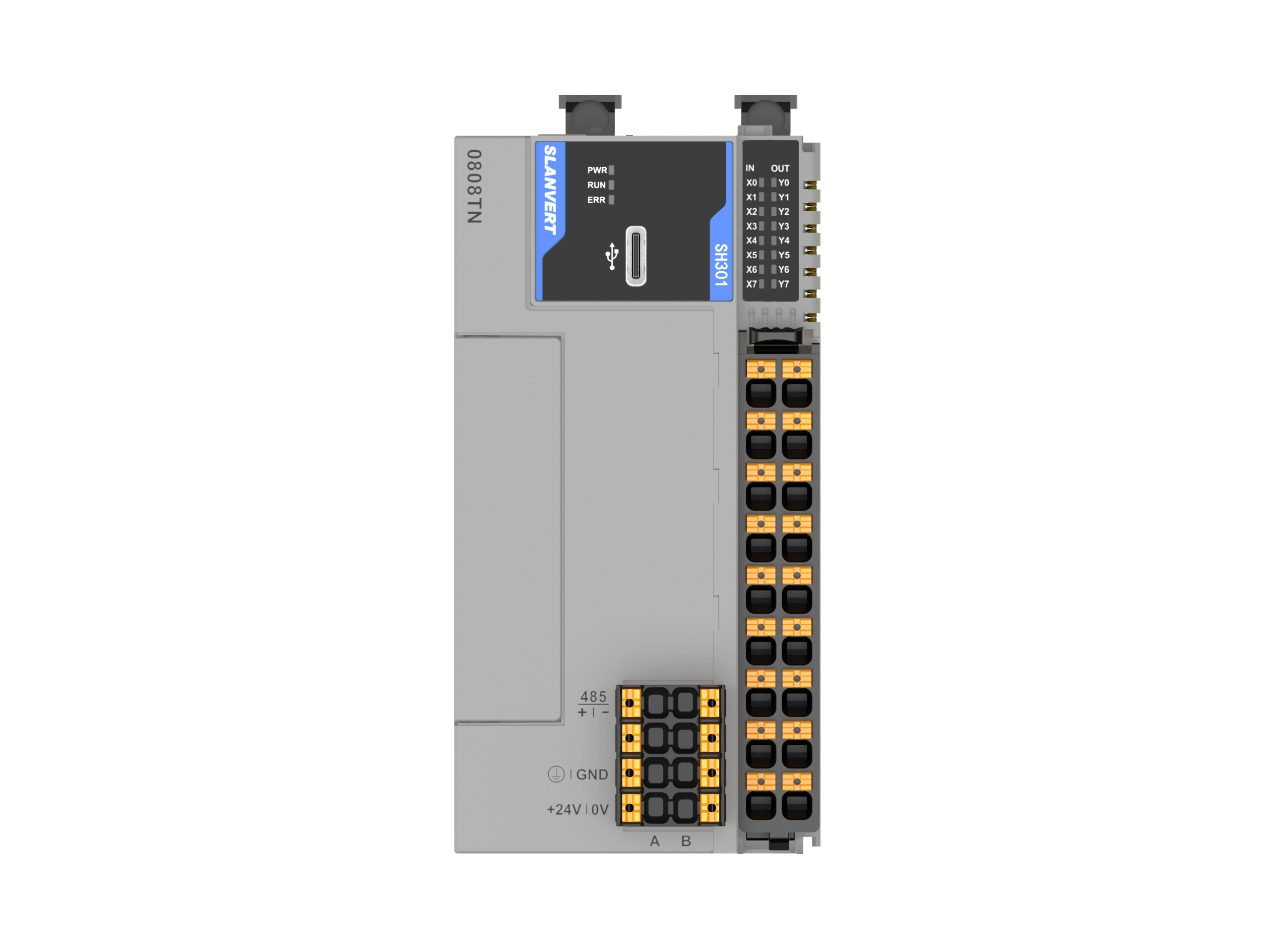

| Model | SH301-0808TN | SH301-0808TP | SH311-0808TN | SH311-0808TP | |
|
Features |
8 points DC24V input 8 points NPN output 1 serial port 1 USB 8*200kHz input/output |
8 points DC24V input 8 points PNP output 1 serial port |
8 points DC24V input 8 points NPN output 1 serial port 1 USB 1 CANopen 1 Ethernet 8*200kHz input/output |
8 points DC24V input 8 points PNP output 1 serial port 1 USB 1 CANopen 1 Ethernet 8*200kHz input/output |
|
| Supply voltage | DC24V | ||||
| Program storage capacity | 200K Bytes | ||||
| Power-off retention | 128K Bytes user soft components, about 84K Bytes power-off retention; 1M Bytes custom variables, of which 128K Bytes power-off retention | ||||
| Programming language | LD, FBD, ST, SFC | ||||
| Right-side expansion | Max. 16 pcs SH series right-side expansion module | ||||
| Left-side expansion | Max. 1 pc SH series left-side expansion module | ||||
| Real-time clock | PLC without real-time clock, can be extended with 1pc left-side RTC expansion module | ||||
| SD card | SD card can be used to upgrade the firmware update program. | ||||
| USB | USB2.0, Type C. Supports program upload and download, monitoring, solid-state software upgrade. | ||||
| Input | 8-channel 200kHz high-speed pulse input, Support single-phase, dual-phase (Up/Down), AB phase (1x and 4x) counting. |
||||
| Output | 8-channel 200kHz high-speed pulse output, supporting positioning control instruction group | ||||
|
RS-485 |
bps | 1.2kbps~115.2kbps | |||
| Protocol | With 1 communication interface, support 2 expansions, supporting Modbus/Freeport/N:N communication protocol | ||||
| Terminal resistor | With terminal resistor, can be used as master or slave, supports up to 31 Modbus-RTU slaves | ||||
| CAN | No | Support CANopen master, supports up to 31 slaves | |||
| EtherNET | No |
Support ModbusTCP master-slave protocol, program upload, download and monitoring, support 16 slaves and 4 masters at the same time, TCP free protocol, support 4 connections | |||
| Motion control | Support positioning control instruction group, support linear and circular interpolation, electronic gear, E-CAM motion control. | ||||

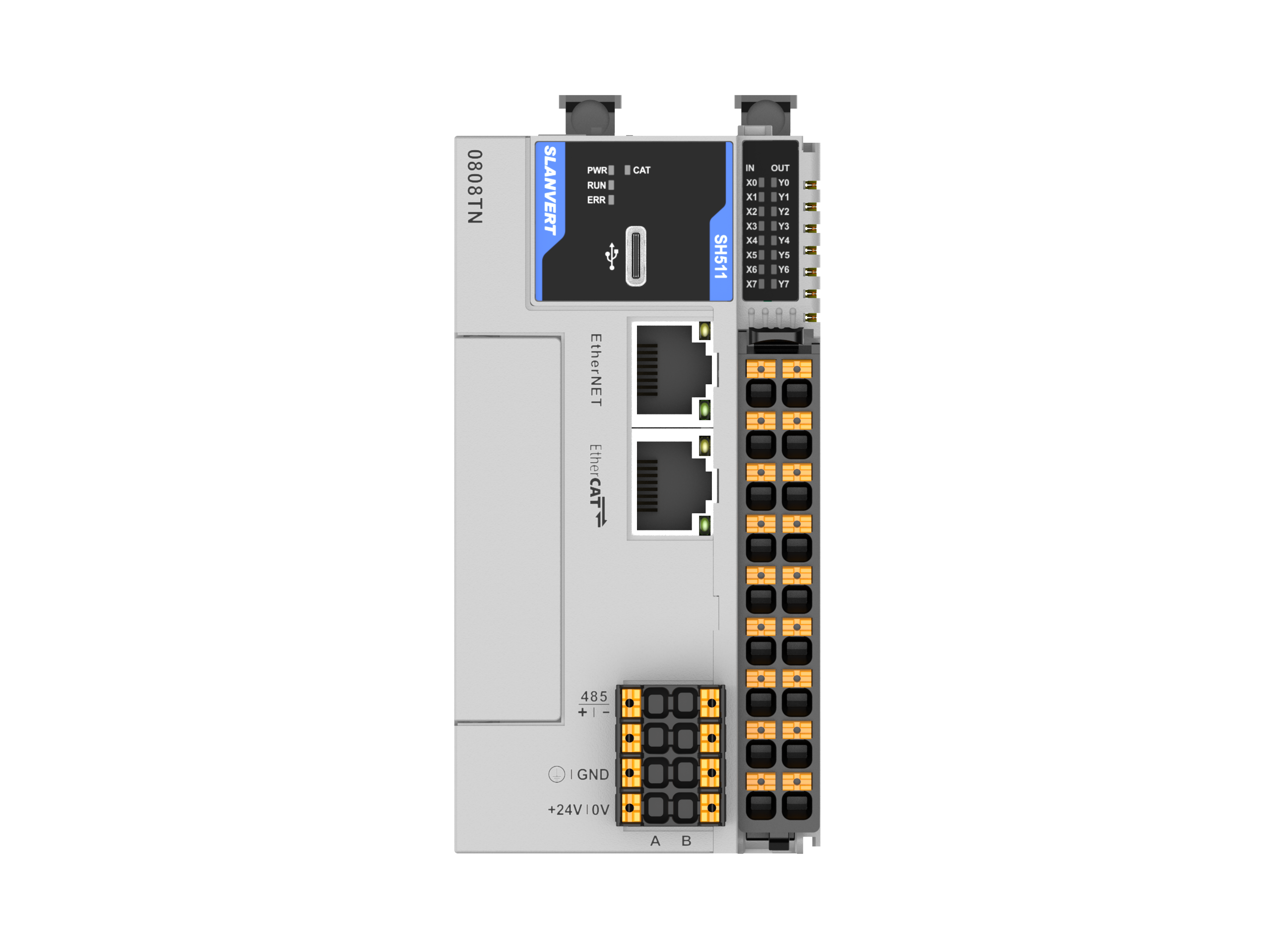

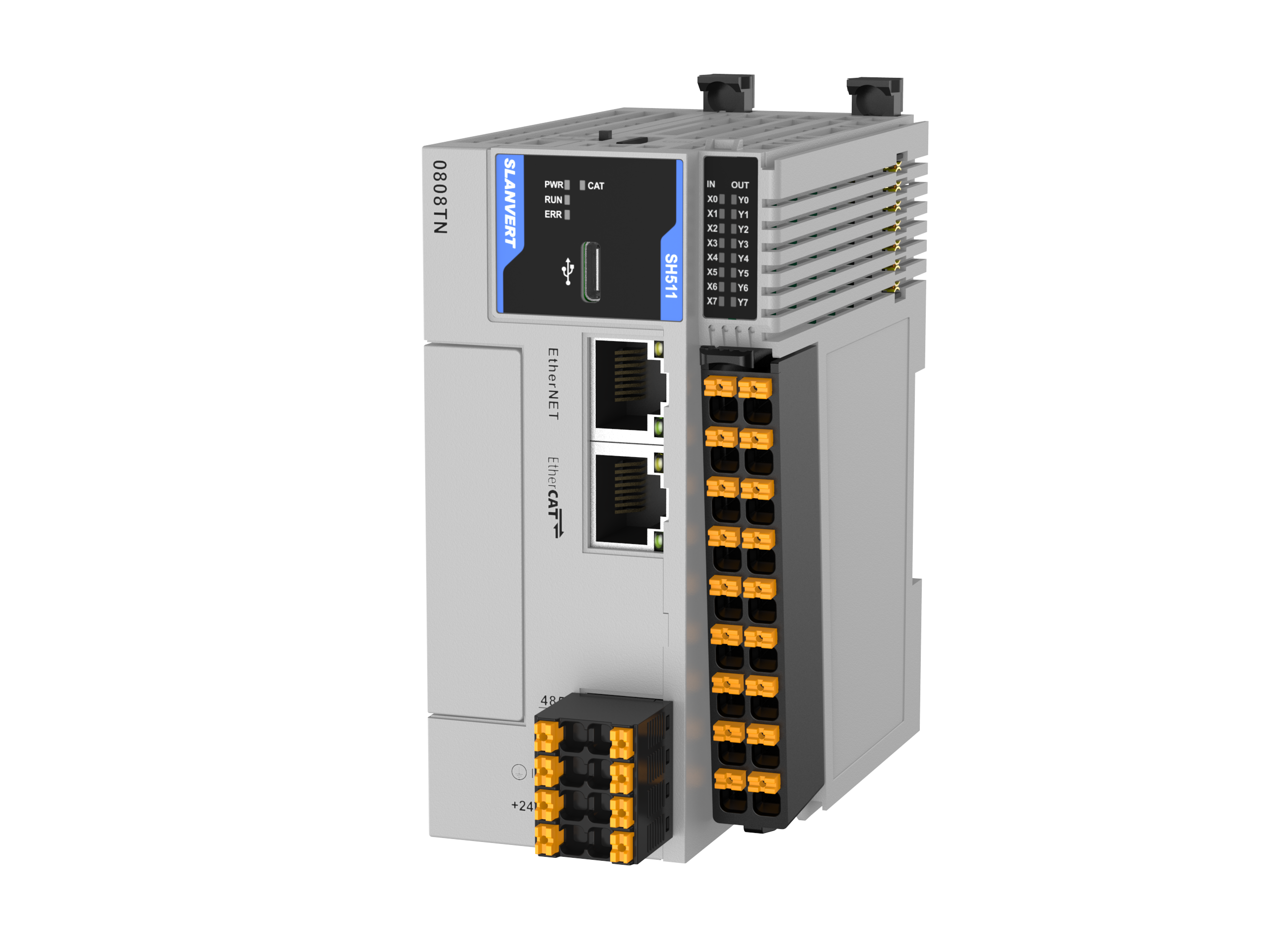

SH500 series*

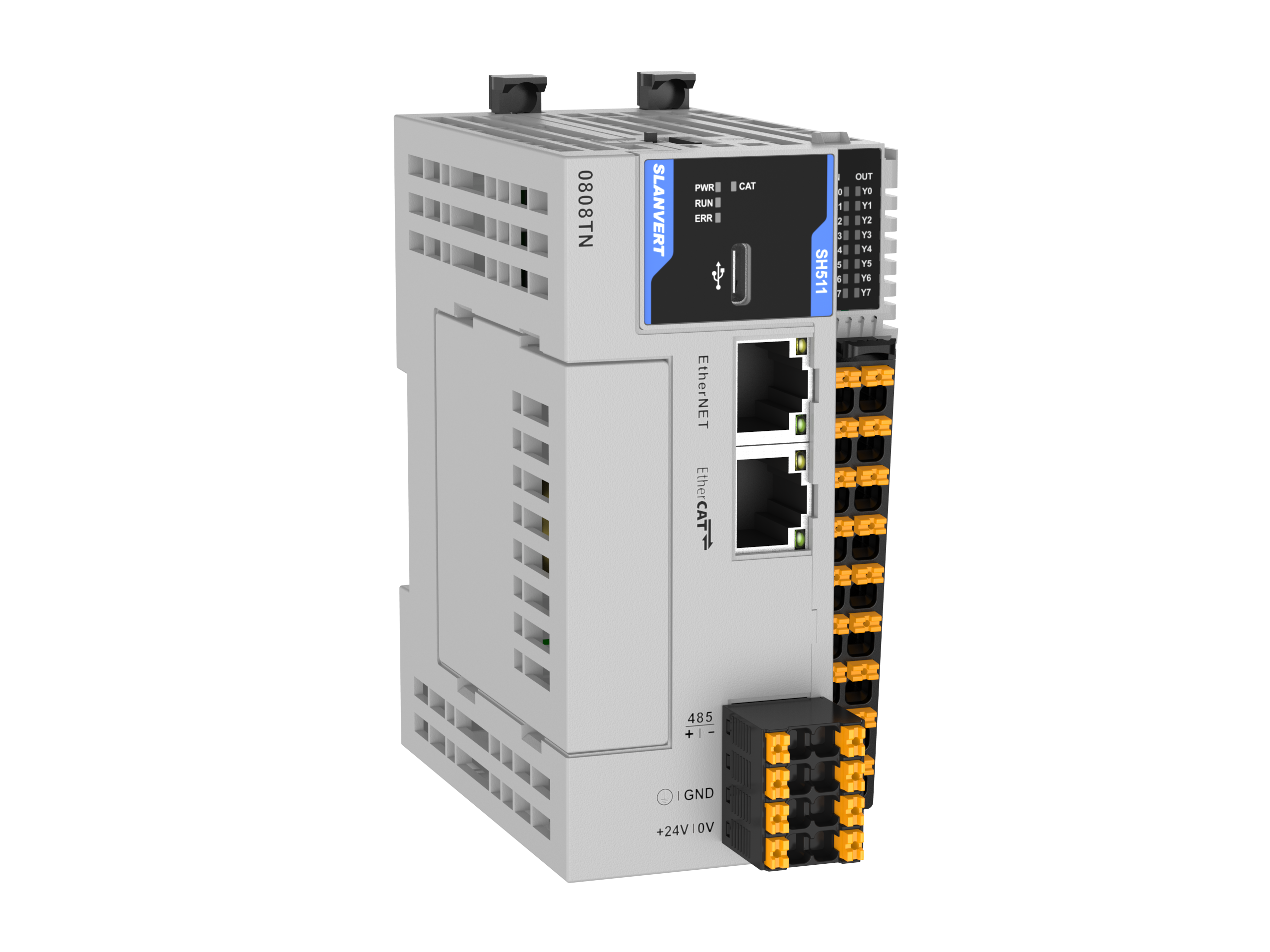

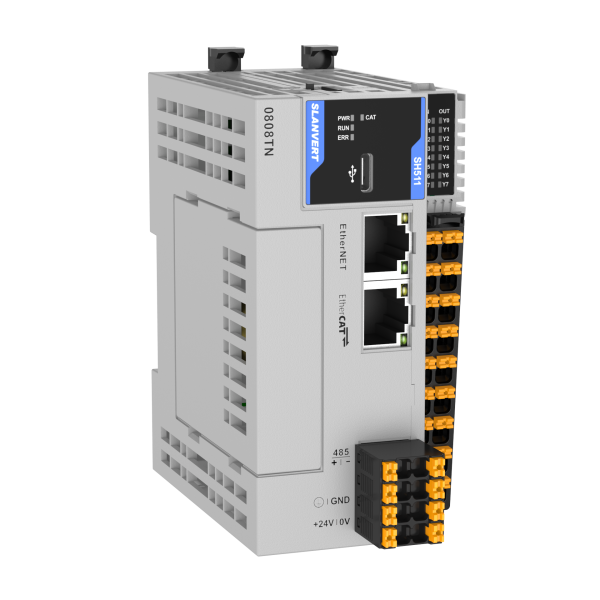

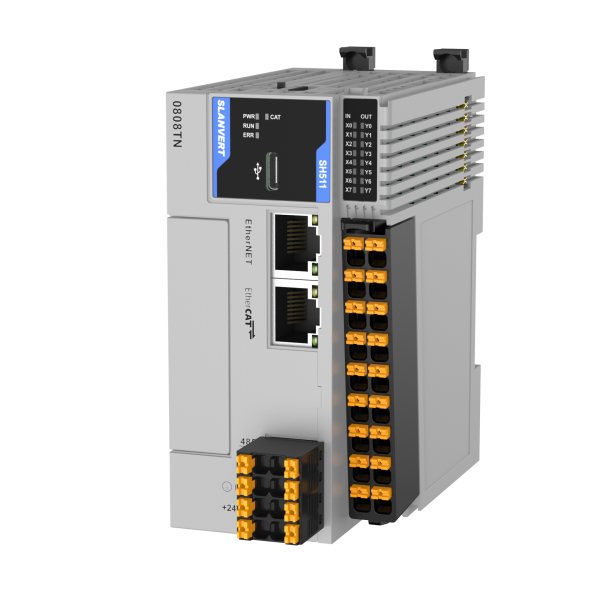

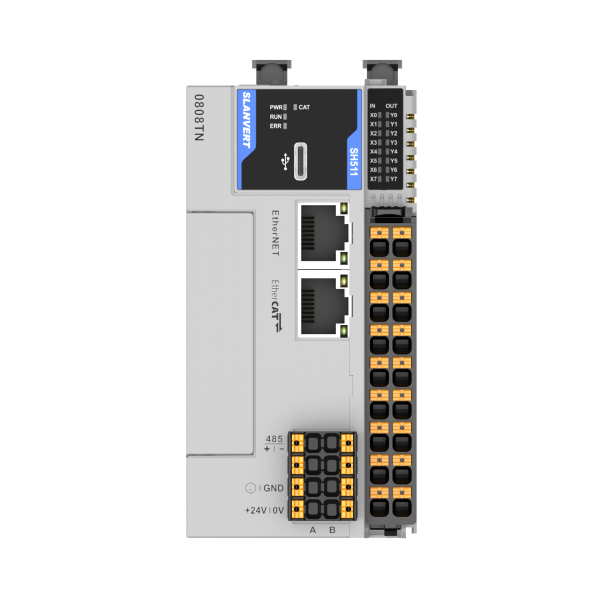

| Model | SH511-0808TN | SH511-0808TP | SH522-0808TN | SH522-0808TP | SH523-0808TN | SH523-0808TP | |
| Feature | 8-point DC24V input, 8-point NPN transistor output, 1 serial port, 1 USB, 1 Ethernet, 1 EtherCAT bus, maximum 8 axis |
8-point DC24V input, 8-point PNP transistor output, 1 serial port, 1 USB, 1 Ethernet, 1 EtherCAT bus, maximum 8 axis |
8-point DC24V input, 8-point NPN transistor output, 1 serial port, 1 USB, 1 CANopen, 2 Ethernet, 1 EtherCAT bus, maximum 16 axis |
8-point DC24V input, 8-point PNP transistor output, 1 serial port, 1 USB, 1 CANopen , 2 Ethernet, 1 EtherCAT bus, maximum 16 axis |
8-point DC24V input, 8-point NPN transistor output, 1 serial port, 1 USB, 1 CANopen , 2 Ethernet, 1 EtherCAT bus, maximum 32 axis |
8-point DC24V input, 8-point PNP transistor output, 1 serial port, 1 USB, 1 CANopen , 2 Ethernet, 1 EtherCAT bus, maximum 32 axis |
|
| Supply voltage | DC24V | ||||||
| Program storage capacity | 200K Bytes | ||||||
| Power-off retention | 128K Bytes user soft components, about 84K Bytes power-off retention; 1M Bytes custom variables, of which 128K Bytes power-off retention | ||||||
| Programming language | LD, FBD, ST, SFC | ||||||
| Right-side expansion | Max. 16 pcs SH series right-side expansion module | ||||||
| Left-side expansion | Max. 1 pc SH series left-side expansion module | ||||||
| Real-time clock | PLC without real-time clock, can be extended with 1pc left-side RTC expansion module | ||||||
| SD card | SD card can be used to upgrade the firmware update program. | ||||||
| USB | USB2.0, Type C. Supports program upload and download, monitoring, solid-state software upgrade | ||||||
| Input | 8-channel 200kHz high-speed pulse input support single-phase, dual-phase (Up/Down), AB phase (1x and 4x) counting |
||||||
| Output | 8-channel 200kHz high-speed pulse output supporting positioning control instruction group | ||||||
| RS485 | Protocol | With 1 communication interface, support 2 expansions, supporting Modbus/Freeport/N:N communication protocol | |||||
| Terminal resistor | With terminal resistor, can be used as master or slave, supports up to 31 Modbus-RTU slaves | ||||||
| CAN | No | Supports CANopen master, up to 31 slaves | |||||
| Ethernet | Number of network ports | Single network port | Dual Ethernet ports correspond to single network card, two Ethernet ports share one IP, support network switching function |
||||
| Protocol | Support Modbus TCP master-slave protocol, support program upload, download and monitoring, support 16 slaves and 4 masters at the same time. TCP free protocol, support 4 connections. | ||||||
| Motion control | Support positioning control instruction group, support linear and circular interpolation, electronic gear, electronic cam motion control. | ||||||
| Ether CAT | Number of axis | 8 axis | 16 axis | 32 axis | |||
| Number of slaves | Up to 72 slaves (including servo axis), including real axis and virtual axis, totaling 48 axis | ||||||
| Performance of axis | Communication cycle 250us~8ms, adjustable synchronization jitter time ±80ns | ||||||
